[c언어] 리눅스 tcp/ip client socket(클라이언트 소켓), tcp/ip server socket(서버 소켓) 메시지(message) 송신, 수신(send/recv) 예제

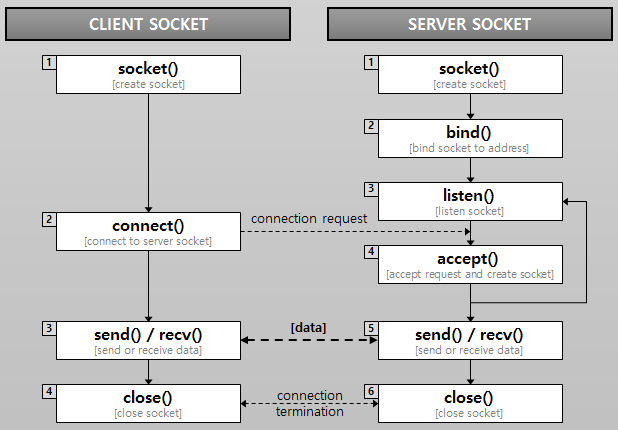

-tcp/ip 예제 플로우 & 로직 설명.(client socket, server socket은 한개의 노드에서 실행됨.)
-사전에 수행되어야 하는 작업.
- gcc 컴파일러 설치되어있어야 함.
-예제 실행하는 서버 gcc 버전.
$ gcc --version
gcc (Ubuntu 7.5.0-3ubuntu1~18.04) 7.5.0
Copyright (C) 2017 Free Software Foundation, Inc.
This is free software; see the source for copying conditions. There is NO
warranty; not even for MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.
-linux tcp/ip server socket 코드(tcpip_server_socket.c)
#include <sys/types.h>
#include <assert.h>
#include <string.h>
#include <stdlib.h>
#include <stdio.h>
#include <arpa/inet.h>
#include <sys/socket.h>
#define BUFFSIZE 1024
#define PORT 41333
#define MSG "serverMsg"
int main(int argc, char **argv)
{
//set msg
char send_msg[BUFFSIZE], recv_msg[BUFFSIZE];
//make server socket
int server_socket, client_socket, client_addr_size;
int opt, len;
struct sockaddr_in server_addr, client_addr;
server_socket = socket(PF_INET, SOCK_STREAM, 0);
if (server_socket < 0)
{
printf("(I) socket error!!!\n");
exit(1);
}
opt = 1;
setsockopt(server_socket, SOL_SOCKET, SO_REUSEADDR, &opt, sizeof(opt));
memset(&server_addr, 0, sizeof(server_addr));
server_addr.sin_family = AF_INET;
server_addr.sin_addr.s_addr = htonl(INADDR_ANY);
server_addr.sin_port = htons(PORT);
//bind
if (-1 == bind(server_socket, (struct sockaddr *)&server_addr, sizeof(server_addr)))
{
printf("(E) accept() error!!!\n");
close(server_socket);
exit(1);
}
printf("(I) bind success...\n");
//listen
if (-1 == listen(server_socket, 5))
{
printf("(E) listen() error!!!\n");
close(server_socket);
exit(1);
}
printf("(I) listen success[port:%d]\n\n", PORT);
client_addr_size = sizeof(client_addr);
while(1)
{
//accept
printf("(I) waitting to accept...\n");
client_socket = accept(server_socket, (struct sockaddr *)&client_addr, &client_addr_size);
if (client_socket < 0)
{
printf("(E) accept() error!!!\n");
close(server_socket);
exit(1);
}
printf("(I) connection accepted[%d]...\n", client_socket);
//recv_send
for(int i = 0; i < 1; i++)
{
memset(send_msg, 0x00, sizeof(send_msg));
memset(recv_msg, 0x00, sizeof(recv_msg));
len = recv(client_socket, recv_msg, BUFFSIZE, 0);
if (len < 0)
{
printf("(E) recv() error[%d]!!!\n", len);
close(client_socket);
close(server_socket);
exit(1);
} else if (len == 0) {
break;
}
printf("(I) recv[%04d][%.*s]\n", len, len, recv_msg);
strcpy(send_msg, MSG);
len = send(client_socket, send_msg, len, 0);
if (len < 0)
{
printf("(E) send() error[%d]!!!\n", len);
close(client_socket);
close(server_socket);
exit(1);
}
printf("(I) send[%04d][%.*s]\n\n", len, len, send_msg);
}
close(client_socket);
}
close(client_socket);
close(server_socket);
return 0;
}
-linux tcp/ip client socket 코드(tcpip_client_socket.c)
#include <sys/types.h>
#include <assert.h>
#include <string.h>
#include <stdlib.h>
#include <stdio.h>
#include <time.h>
#include <arpa/inet.h>
#include <sys/socket.h>
#define BUFFSIZE 1024
#define IP_ADDR "127.0.0.1"
#define PORT 41333
#define MSG "clientMsg"
int main(int argc, char **argv)
{
//set time
char timebuff[50] = {0};
struct tm *ptm;
time_t now;
now = time(NULL);
ptm = localtime(&now);
strftime(timebuff, sizeof(timebuff), "%Y-%m-%d %H:%M:%S", ptm);
//set msg
char send_msg[BUFFSIZE], recv_msg[BUFFSIZE];
//make client socket
int client_socket, len;
struct sockaddr_in server_addr;
client_socket = socket(PF_INET, SOCK_STREAM, 0);
if (client_socket < 0)
{
printf("(E) socket() error!!!\n");
exit(1);
}
memset(&server_addr, 0, sizeof(server_addr));
server_addr.sin_family = AF_INET;
server_addr.sin_addr.s_addr = inet_addr(IP_ADDR);
server_addr.sin_port = htons(PORT);
//connect
if (-1 == connect(client_socket, (struct sockaddr *)&server_addr, sizeof(server_addr)))
{
printf("(E) connect() error[IP:%s, PORT:%d]\n", IP_ADDR, PORT);
exit(1);
}
printf("(I) socket connect...[%s:%d]\n", IP_ADDR, PORT);
memset(send_msg, 0x00, sizeof(send_msg));
memset(recv_msg, 0x00, sizeof(recv_msg));
strcpy(send_msg, MSG);
//send_recv
for (int i = 0; i < 1; i++)
{
len = strlen(send_msg);
len = send(client_socket, send_msg, len, 0);
if (len < 0)
{
printf("(E) send() error[%d]!!!\n", len);
close(client_socket);
exit(1);
}
printf("send time : %s\n", timebuff);
printf("(I) send[%04d][%.*s]\n", len, len, send_msg);
len = recv(client_socket, recv_msg, len, 0);
if (len < 0)
{
printf("(E) recv() error[%d]!!!\n", len);
close(client_socket);
exit(1);
}
else if (len == 0)
{
printf("(W) socket closed...[%d]!!!\n", len);
close(client_socket);
exit(1);
}
printf("recv time : %s\n", timebuff);
printf("(I) recv[%04d][%.*s]\n\n", len, len, recv_msg);
}
close(client_socket);
return 0;
}
-linux tcp/ip server socket 컴파일(warning 무시)
$gcc -o tcpip_server_socket tcpip_server_socket.c
-linux tcp/ip client socket 컴파일(warning 무시)
$gcc -o tcpip_client_socket tcpip_client_socket.c
-linux tcp/ip server socket 실행
$./tcpip_server_socket
-linux tcp/ip client socket 실행
$./tcpip_client_socket
-linux tcp/ip server socket 실행 결과.
(I) bind success...
(I) listen success[port:41333]
(I) waitting to accept...
(I) connection accepted[4]...
(I) recv[0009][clientMsg]
(I) send[0009][serverMsg]
(I) waitting to accept...
-linux tcp/ip client socket 실행 결과.
(I) socket connect...[127.0.0.1:41333]
send time : 2021-12-17 17:30:22
(I) send[0009][clientMsg]
recv time : 2021-12-17 17:30:22
(I) recv[0009][serverMsg]
